Product Details:

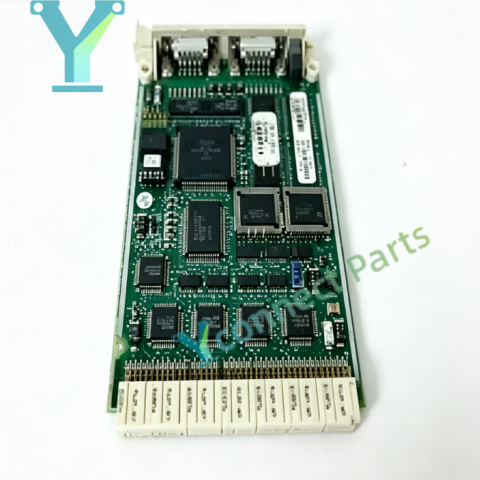

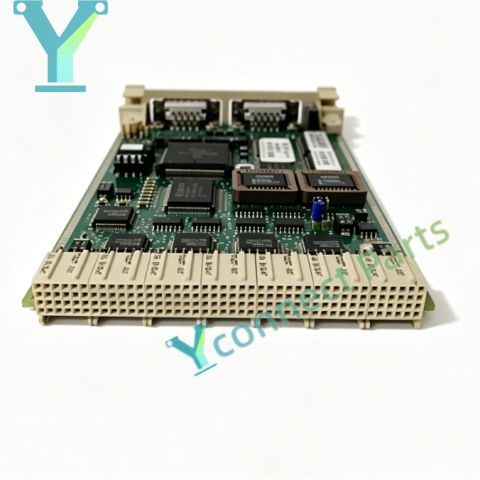

The ABB CI535V30 3BSE022162R1 SPA bus communication module is a SPA server protocol submodule for ABB Advant Master DCS and Advant Controller 450 system. This SPA bus communication module supports SPA bus connection and can connect up to 50 field nodes, realizing stable real-time data exchange between the main controller and distributed field devices. It can be installed on SC510 or SC520 submodule carrier, communicates with the main controller through rack backplane bus. It is equipped with built-in communication fault diagnosis function and LED status indicators to monitor network running status in real time. The module adopts electromagnetic interference suppression design to maintain stable data transmission in complex industrial site environment. As essential industrial spare parts, it can replace faulty SPA bus communication module to restore SPA network communication function of DCS system and minimize production downtime.

Product Application:

This Advant Master DCS module is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and process automation projects. It serves as the SPA bus gateway of Advant control platform,realizing data interaction between Advant controller and SPA bus field stations for industrial signal collection and control command transmission.

Parameters and Specifications:

Brand: ABB

Model: CI535V30 3BSE022162R1

Product Type: SPA Bus Communication Submodule

Series: Advant Master DCS, Advant Controller 450

Communication Protocol: SPA Server Protocol

Max Supported Nodes:50

Power Supply: Powered by submodule carrier backplane

Communication Interface: SPA bus, backplane bus

Feature: Built-in fault diagnosis, LED status indicator

Compatible Carrier: SC510, SC520

Protection Class:IP20

Mounting: Installed on submodule carrier

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.15kg

Dimension:245mm ×20mm ×120mm

Certification:CE,RoHS

Our ABB CI535V30 3BSE022162R1 SPA bus communication module is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this Advant Master DCS module.
