Product Details:

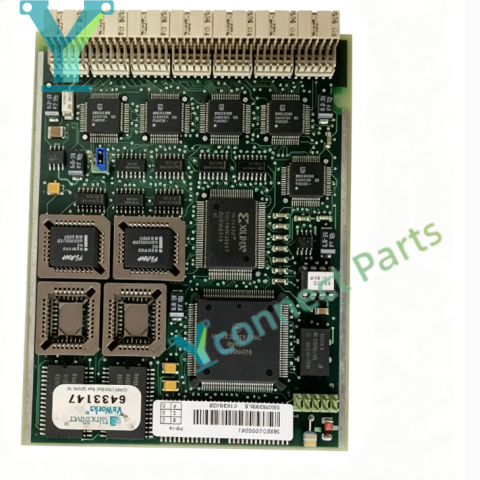

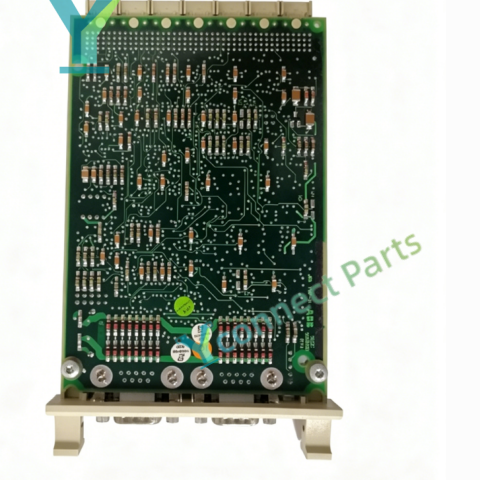

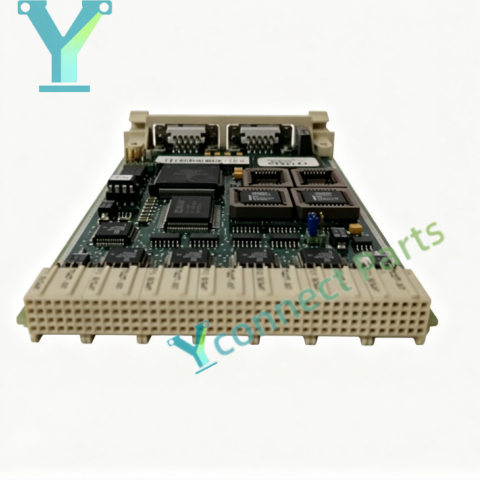

The ABB CI534V02 3BSE010700R01 is a Modbus communication submodule for ABB Advant Controller 400 and Advant Master DCS system. This Modbus communication submodule supports Modbus RTU protocol via RS485 interface, realizing data exchange between Advant controller and third-party field devices including transmitters, inverters and meters. It can transmit real-time process data and receive control commands, equipped with built-in communication fault diagnosis and TX/RX LED status indicators for quick fault checking. The submodule is installed on SC510 or SC520 submodule carrier and communicates with the main controller through backplane bus. It adopts electromagnetic interference suppression design to maintain stable serial communication in noisy industrial sites. As essential industrial spare parts, it can replace faulty Modbus communication submodule to restore data interconnection function of DCS system and minimize production downtime.

Product Application:

This Advant Controller 450 module is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and process automation projects. It serves as the serial communication gateway of Advant control platform,realizing data interaction between ABB DCS and Modbus compatible field instruments and control equipment.

Parameters and Specifications:

Brand: ABB

Model: CI534V02 3BSE010700R01

Product Type: Modbus Communication Submodule

Series: Advant Controller 400 / Advant Master DCS

Communication Protocol: Modbus RTU

Interface: RS485

Baud Rate: Up to 19200 baud

Power Supply: Powered by submodule carrier

Feature: TX/RX LED indicator, communication fault diagnosis

Compatible Carrier: SC510, SC520

Protection Class:IP20

Mounting: Installed on submodule carrier

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.155kg

Dimension:238.5mm ×108mm ×27mm

Certification:CE,RoHS

Our ABB CI534V02 3BSE010700R01 Modbus communication submodule is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this Advant Controller 450 module.
