Product Details:

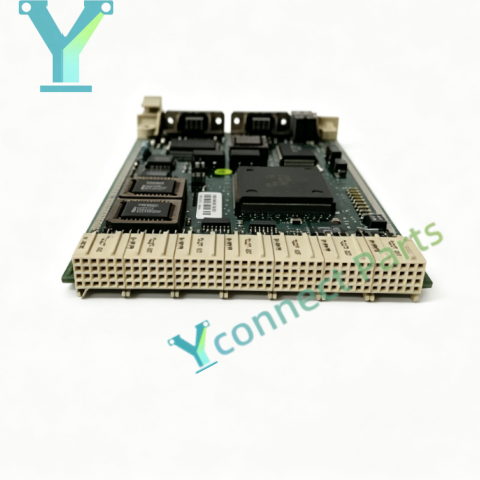

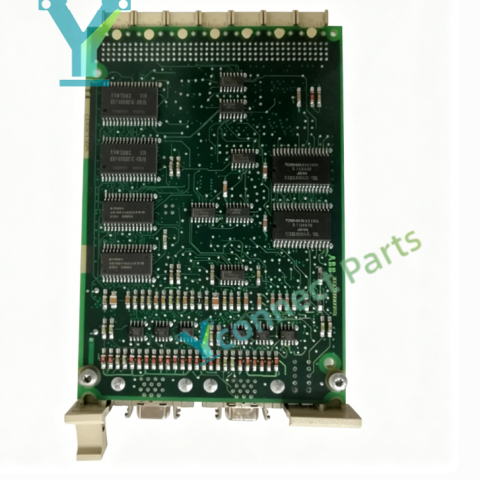

The ABB CI522A 3BSE018283R1 AF100 interface module is a communication interface card designed for ABB AC800M controller and System 800xA DCS system. This AF100 interface module realizes data communication between AC800M controller and S800 remote I/O stations, supporting redundant AF100 bus connection to improve communication reliability. It can transmit field I/O signals and diagnostic information between controller and remote I/O modules, equipped with built-in communication fault diagnosis and LED status indicators to monitor bus working status in real time. The module adopts galvanic isolation design to reduce electromagnetic interference and ensure stable data transmission in industrial control sites. As essential industrial spare parts, it can replace faulty AF100 interface module to restore communication connection between controller and S800 I/O units and minimize production downtime.

Product Application:

This S800 I/O communication module is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and process automation projects. It serves as the core AF100 bus interface of AC800M control platform,realizing data interaction between main controller and distributed S800 remote I/O modules for on-site industrial equipment signal acquisition and control output.

Parameters and Specifications:

Brand: ABB

Model: CI522A 3BSE018283R1

Product Type: AF100 Interface Module

Series: AC800M, System 800xA

Communication Interface:AF100 bus, support redundant connection

Power Supply:Power supplied by rack backplane

Feature:Communication fault diagnosis, LED status indicator, galvanic isolation

Protection Class:IP20

Mounting:Rack mount

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.20kg

Dimension:265mm ×27mm ×120mm

Certification:CE,RoHS

Our ABB CI522A 3BSE018283R1 AF100 interface module is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this S800 I/O communication module.
