Product Details:

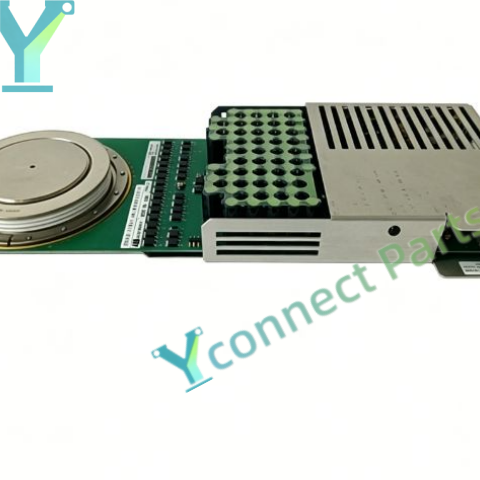

The ABB AC10272001R0101 5SXE08-0167 5SHY5045L0020 IGCT module is a high-power integrated gate-commutated thyristor used for medium voltage power conversion systems. This IGCT module adopts press-pack packaging, featuring high voltage withstand capability, large current handling capacity and rapid switching characteristics. As important industrial spare parts, it can replace faulty power semiconductor module to help power conversion equipment resume normal operation and cut down system downtime.

Product Application:

This power semiconductor module is widely applied in medium voltage drives, static var compensators, power grid transmission, wind and hydro power plants, metallurgy and mining power control systems. It acts as the core power switching device inside power converters, achieving efficient energy conversion and stable power regulation for power grid and heavy industrial facilities.

Parameters and Specifications:

Brand: ABB

Model: AC10272001R0101 5SXE08-0167 5SHY5045L0020

Product Type: IGCT Module / Power Semiconductor Module

Repetitive Peak Off-state Voltage:4500V

Max Turn-off Current:5000A

Cooling Method: Double-sided cooling

Control Interface: Fiber optic

Operating Junction Temperature:-40℃~+125℃

Weight:2.75kg

Origin: Switzerland

Certification:CE,RoHS

Our ABB AC10272001R0101 5SXE08-0167 5SHY5045L0020 IGCT module is fully tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this power semiconductor module.
