Product Details:

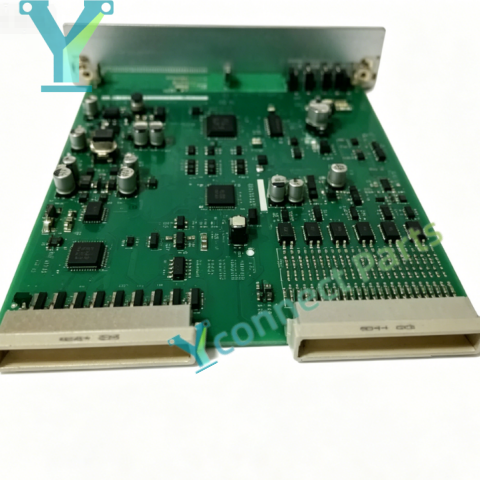

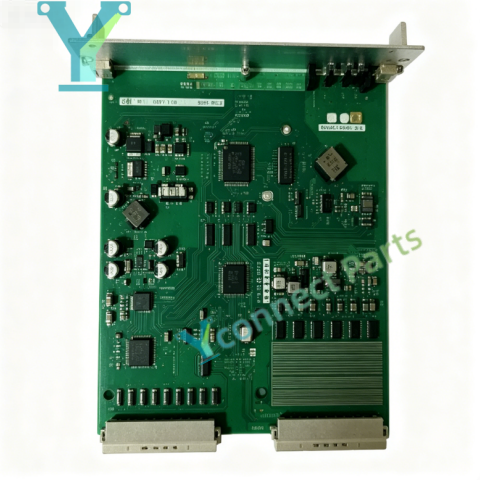

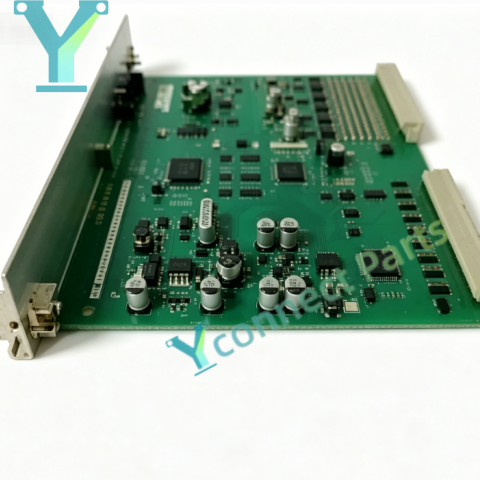

The ABB 216EA62 1MRB150083R1 F 1MRB178066R1 F analog input module is a high-precision signal acquisition board for ABB REG216 generator protection and excitation control system. This analog input module has 24 synchronous sampling channels, divided into 4 groups of 6 channels, supporting 600Hz sampling frequency for 50Hz power grid or 720Hz for 60Hz power grid. It converts CT and PT analog signals into digital signals for processor calculation, with built-in signal filtering and over-range protection. As essential industrial spare parts, it can replace faulty analog input module to restore stable operation of the power protection system and minimize production downtime.

Product Application:

This REG216 module is widely used in thermal power generators,hydroelectric units,substation protection and large power plant excitation control systems. It serves as the analog signal front-end acquisition unit of REG216 protection platform,real-time collecting current and voltage signals of generators and transformers,providing accurate raw data for protection logic judgment and closed-loop regulation.

Parameters and Specifications:

Brand: ABB

Model: 216EA62 1MRB150083R1 F 1MRB178066R1 F

Product Type: Analog Input Module

Series: REG216

Power Supply:24V DC

Input Channels:24 analog inputs, 6 per group

Sampling Frequency:600Hz(50Hz system),720Hz(60Hz system)

Communication Interface:Rack backplane bus

Protection Class: IP20

Mounting: Rack mount

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.55kg

Dimension:165mm ×100mm ×60mm

Certification:CE,RoHS

Our ABB 216EA62 1MRB150083R1 F 1MRB178066R1 F analog input module is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this REG216 module.
