Product Details:

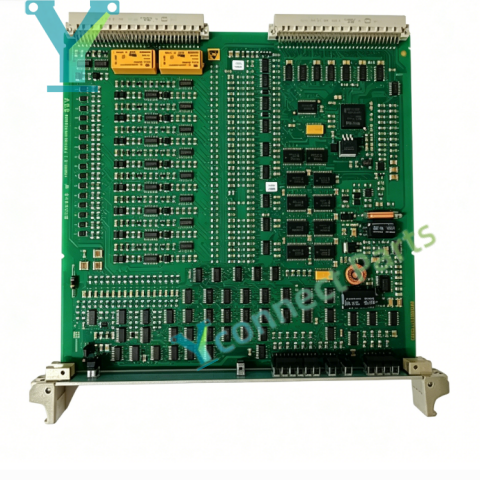

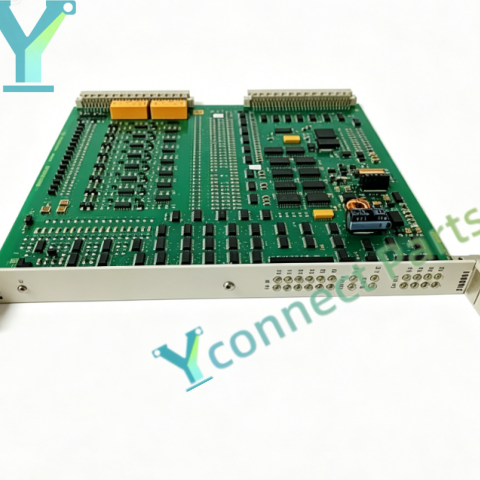

The ABB 216DB61 HESG324063R100 J binary input output module is a trip output and binary input unit for ABB REG216 generator protection and excitation control system. This module comes with 16 digital input channels and 8 bipolar trip relay output channels, equipped with output circuit monitoring and LED status indication functions. It can receive field binary signals and send trip commands to protection relays reliably. As essential industrial spare parts, it can replace faulty binary input output module to restore stable operation of the protection system and minimize power production downtime.

Product Application:

This REG216 module is widely used in hydroelectric generators,thermal power generators,substation protection and power plant excitation control systems. It acts as the binary signal interface unit of REG216 platform,realizing field switch signal collection,protection trip output and reliable signal transmission for power generation protection equipment.

Parameters and Specifications:

Brand: ABB

Model: 216DB61 HESG324063R100 J

Product Type: Binary Input Output Module

Series: REG216

Power Supply:24V DC

Digital Input:16 channels

Trip Output:8 bipolar relay outputs

Function: Trip circuit monitoring

Indicator: Front LED status display

Communication Interface: Rack backplane bus

Protection Class: IP20

Mounting: Rack mount

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.3kg

Dimension:165mm ×100mm ×30mm

Certification:CE,RoHS

Our ABB 216DB61 HESG324063R100 J binary input output module is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this REG216 module.
