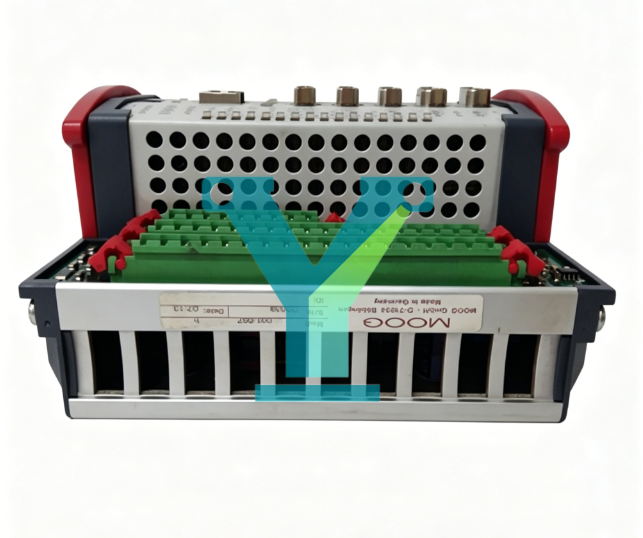

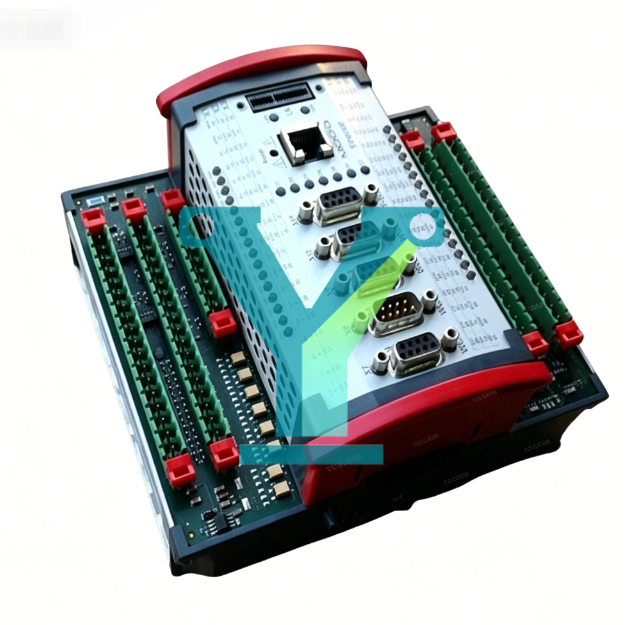

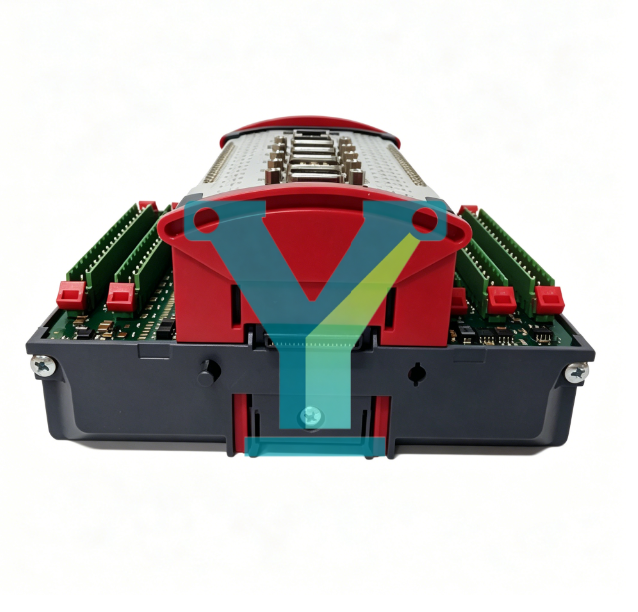

MOOG D136‑001‑001 belongs to MOOG MSC servo controller series. It is a high‑performance digital motion control module for M3000 automation system, integrating PLC logic processing and high‑speed closed‑loop motion control for hydraulic and electric actuators. It adopts 32‑bit PowerPC RISC processor with floating‑point unit, equipped with 4MB RAM and 4MB Flash EEPROM for 10‑year non‑volatile data retention.

Power supply is 24V DC with operating range 18‑36V DC, current consumption is 0.5A at idle and up to 2A under full load. It has 8 channels of 16‑bit analog inputs configurable for ±10V, ±10mA and 4‑20mA signals, 2 channels of 16‑bit analog outputs, 8 individually configurable digital I/O channels and 2 sensor interfaces supporting incremental encoder, SSI and EnDat. Communication interfaces include 10Base‑T Ethernet and dual CAN bus. Minimum task cycle time reaches 400μs with IP20 protection class. Rack‑mount structure and front‑panel LED indicators support on‑site status monitoring and fault diagnosis.

This module receives commands from host system and feedback signals from sensors, executes PID closed‑loop algorithm to realize high‑precision regulation of position, speed and force, and outputs driving signals for servo valves and actuators to perform single‑axis or multi‑axis synchronized motion. It also provides general‑purpose PLC functions for interlock logic, data acquisition and alarm handling.

 With strong anti‑interference capability, it is suitable for material test benches, multi‑axis simulation tables, hydraulic test equipment and high‑performance industrial test machines. It is widely deployed in aerospace testing, automotive test facilities, energy equipment and precision manufacturing. It is used for equipment spare‑part replacement and test‑system retrofit to guarantee control accuracy and fast response of electro‑hydraulic control systemsMoog Inc.
